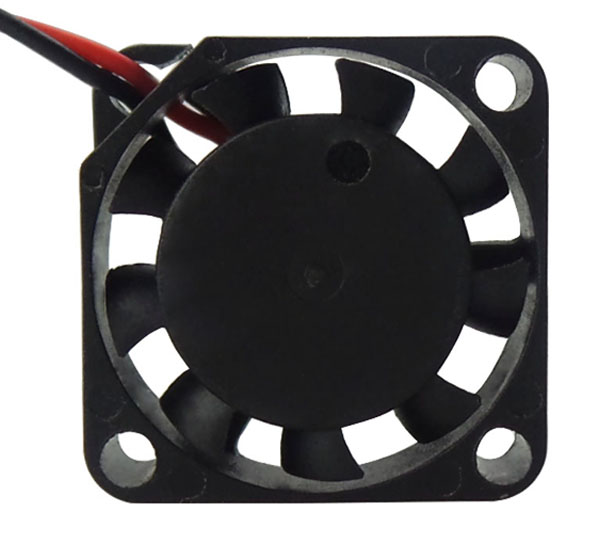

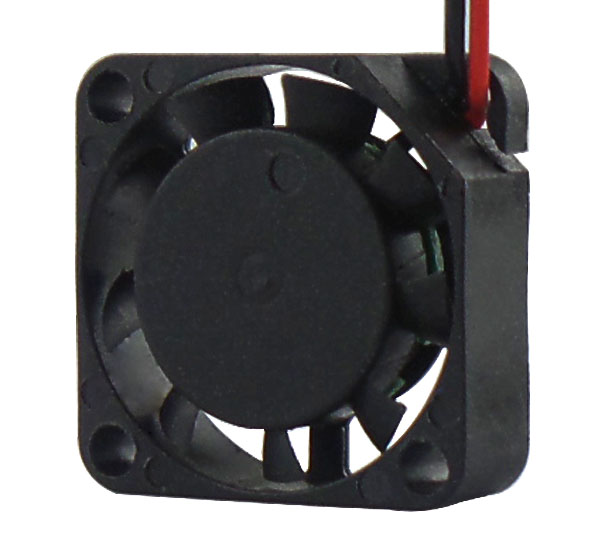

2006 20*20 *06 mm Low Noise Big Air Flow Cooling Fan
Product ParameterParameter
| Model | Bearing Type | Rated Voltage | Current | Speed | AirFlow | Pressure | Noise | Weight |
| VDC | A | RPM | CFM | mmH2O | dBA | g | ||
| FD1220067S/B | Sleeve/Ball | 12 | 0.12 | 15000 | 1.41 | 5.22 | 39.65 | 4 |
| FD1220065S/B | 0.10 | 12000 | 1.02 | 2.69 | 32.20 | |||
| FD1220063S/B | 0.08 | 9000 | 0.77 | 2.02 | 24.16 | |||
| FD0520067S/B | Sleeve/Ball | 5 | 0.22 | 15000 | 1.41 | 5.22 | 39.65 | |
| FD0520065S/B | 0.12 | 12000 | 1.02 | 2.69 | 32.20 | |||
| FD0520063S/B | 0.08 | 9000 | 0.77 | 2.02 | 24.16 |
Product introductionintroduction

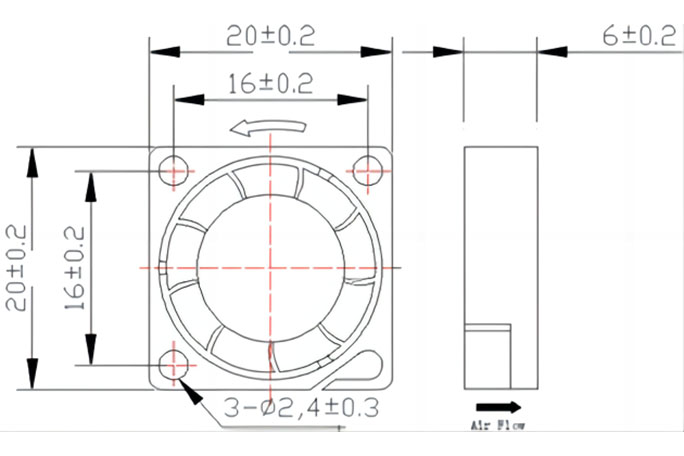

1. The small-sized DC cooling fan, with a side length of 20mm and a thickness of 6mm, is designed for ventilation or heat dissipation in micro portable equipment. This product boasts low power consumption, high air volume, and minimal noise. It is easy to install and offers other convenient features. Made from environmentally friendly PBT material, it promotes green environmental protection.
2. Operating ambient temperature
Ball bearing: -30 to +75℃
Sleeve bearing: -10 to +70℃
3. Insulation resistance:
10 meg ohms min, at 500V DC (between frame and terming)
Dielectric strength: 5mA max at 500V/AC/60Hz one minute (between frame and terminal)
4. Functions:
Frequency generator signal option
5.Rated voltage: 12V .5V
