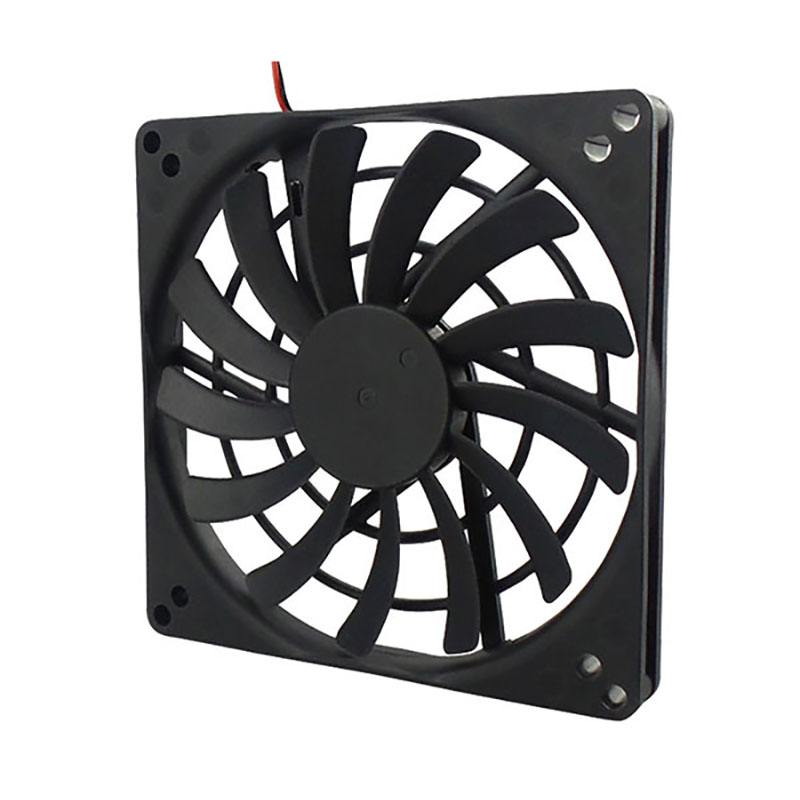

DC10012 100*100*12 mm Ultra-thin notebook cooling pad fan

Peculiarity:

low noise, max air flow

Construction:

Glass fiber reinforced plastic: impeller and housing PBT are UL 94V0 rating

Operating temperature:

Ball bearing: -30 to +75°C

Sleeve bearing: -10 to +70°C

Insulation resistance: 10 mega Ohms min, at 500V DC (between frame and terming)

Dielectric strength: 5mA max at 500V/AC/60Hz one minute (between frame and terminal)

Bearing system: ball bearing or sleeve bearing

Functions:

Frequency generator signal option

Specifications:

Bearing system: Ball bearing or sleeve bearing

Rated voltage: 5V 12V or24V

Introducing our latest innovation in laptop cooling technology - the laptop cooling fan!

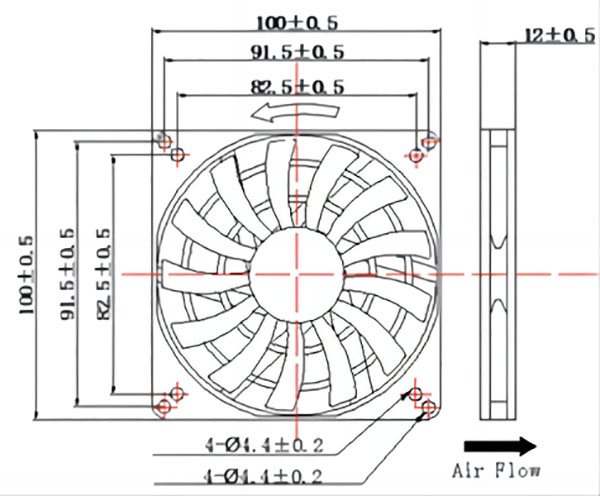

Designed specifically for laptop cooling pads, this fan is a game-changer when it comes to keeping your laptop running smoothly and efficiently.  Measuring 100mm on a side and 12mm thick, this compact yet powerful fan is designed to deliver concentrated cooling air directly to your laptop's heated components, effectively preventing overheating and ensuring optimal performance.

    Product ParameterParameter

    Model Bearing Type Rated Voltage Current Speed Air Flow Pressure Noise Weight
    VDC A RPM CFM mmH₂O dBA g
    FD2410127S/B Sleeve 24 0.20 2400 48.45 2.06 35.83 85
    FD2410125S/B 0.15 2000 38.32 1.82 28.43
    FD2410123S/B 0.12 1600 30.12 1.45 22.50
    FD1210127S/B Sleeve 12 0.30 2400 48.45 2.06 35.83
    FD1210125S/B 0.25 2000 38.32 1.82 28.43
    FD1210123S/B 0.20 1600 30.12 1.45 22.50

    1001204qv510012053zu

    Product introductionintroduction

    Introducing our latest innovation in laptop cooling technology - the laptop cooling fan!

    Designed specifically for laptop cooling pads, this fan is a game-changer when it comes to keeping your laptop running smoothly and efficiently.  Measuring 100mm on a side and 12mm thick, this compact yet powerful fan is designed to deliver concentrated cooling air directly to your laptop's heated components, effectively preventing overheating and ensuring optimal performance.

    What sets our laptop cooling fans apart is their versatility and customization options.  Not only does it offer superior cooling capabilities, it can also be equipped with LED lights in a variety of colors to add a vibrant and stylish feel to your cooling pad setup.  Whether you prefer calming blue, bold red, or trendy white, you have a choice.  With the addition of LED lights, your cooling pad is not only functional, but also a stunning visual accessory in your workspace.

    Say goodbye to the days of worrying about your laptop overheating during intense gaming sessions, tough work tasks, or daily use.  Our laptop cooling fans ensure your device stays cool and reliable no matter what the situation.  Its compact size and powerful performance make it the perfect companion to a laptop cooling pad, providing extra protection and efficiency.

    Experience the difference with our laptop cooling fans and take your laptop cooling to the next level.  With its advanced design and customizable LED options, it's more than just a cooling solution - it's a highlight of your workspace.  Stay cool, stylish and stay productive with our laptop cooling fans.
