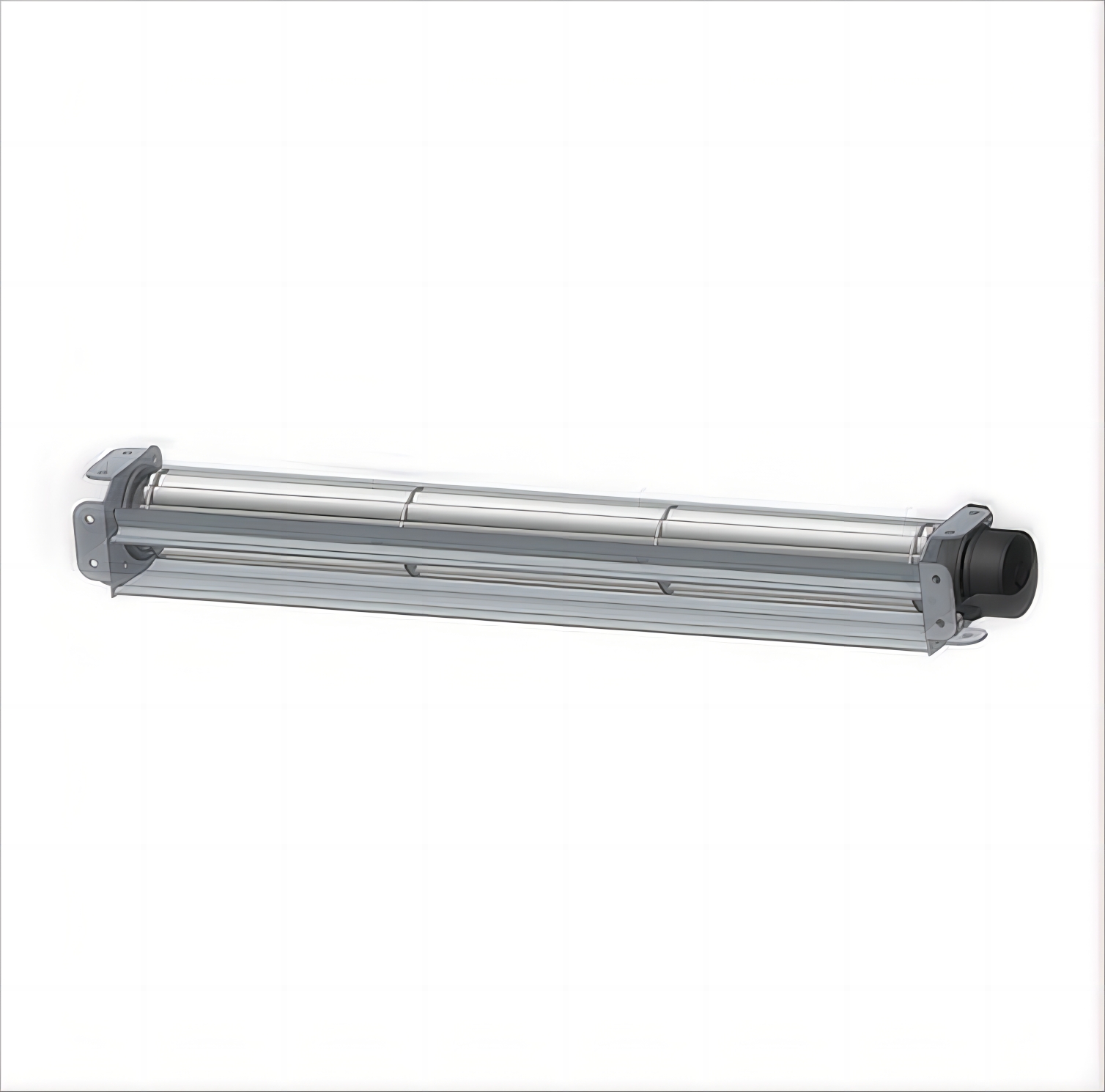

JED-025 DC Cross Flow Cooling Fan For Running Machine

Introducing our latest innovation in cooling technology - the DC cross-flow fan.  With an impeller diameter of only 25 mm, this compact fan is designed to provide efficient and effective cooling in applications where installation space is limited.  Its small size makes it the perfect solution for equipment enclosures and boxes where there is not enough space to accommodate a large cooling system.

Product Synopsis:

Impeller : Aluminumalloy

Bearing : ball bearing or sleeve bearing

Motor: DC brushless motor

Insulation class: B

Insulation withstand voltage: AC 1500V (50/60HZ) one minnute

Insulation resistance: above 100MΩ DC 500V

Operating temperature:0-45℃

Life:

Ball Bearing : 30000hours at 40℃

Sleeve bearing:15000hours at 40℃



    Product ParameterParameter

    Motor:DC Brushless type

    Spec Model Size(mm) Rated
    Voltage
    (V)
    Rated
    Current
    (A)
    Speed
    (r.p.m.)
    Max
    Pressure
    (mmAq)
    Maximun
    Air Flow
    (m²/min)
    Noise
    (dBA)
    Weight
    (g)
    A B C
     JED02509A12 98 108 128 12 0.11 3500 1.6 0.31 32 95
     JED02515A12 160 170 190 0.13 2900 1.4 0.45 29 120
     JED02519A12 198 208 228 0.14 2700 1.3 0.51 28 140
     JED02524A12 250 260 280 0.20 2600 1.8 0.70 32 160
     JED02529A12 298 308 328 0.21 2500 1.6 0.85 33 180

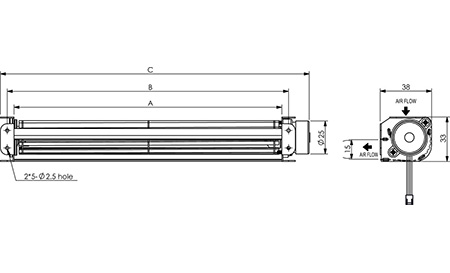

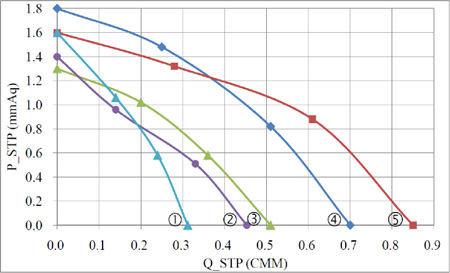

    131-26za131-4m1x

    Product introductionintroduction

    Introducing our latest innovation in cooling technology - the DC cross-flow fan.  With an impeller diameter of only 25 mm, this compact fan is designed to provide efficient and effective cooling in applications where installation space is limited.  Its small size makes it the perfect solution for equipment enclosures and boxes where there is not enough space to accommodate a large cooling system.

    One of the key features of our DC cross-flow fans is their low-noise operation.  The all-metal, pure aluminum fan blades are specifically designed to reduce wind noise, making them ideal for use in environments where noise levels need to be kept to a minimum.  This makes it a popular choice for applications such as treadmills and other fitness equipment, where maintaining a quiet and comfortable environment is crucial.

    In addition to their compact size and quiet operation, our DC cross-flow fans offer the flexibility of customizable lengths, allowing them to be tailored to the specific requirements of your application.  This customization option ensures fans can be seamlessly integrated into a variety of equipment and cabinets, providing reliable, efficient cooling where it's needed.

    The fan's durable construction combined with high-quality materials ensures long-lasting performance and reliability even in demanding environments.  Its all-metal design also makes it resistant to wear and tear, ensuring it can withstand the rigors of continuous use.

    Whether you're looking for a compact cooling solution for treadmills, fitness equipment, or any other application where installation space is limited, our DC cross-flow fans are the perfect choice.  With its small size, low-noise operation and customizable lengths, it provides a versatile and effective cooling solution for a variety of applications.  Experience efficient, quiet cooling with our DC cross-flow fans.

    Operating ambient temperature
    Ball bearing: -30 to +75℃
    Sleeve bearing: -10 to +70℃
    10 meg ohms min, at 500V DC (between frame and terming)
    Dielectric strength: 5mA max at 500V/AC/60Hz one minute (between frame and terminal)
